ELECTROMAGNETIC INFORMATION DISPLAYS

Display of text and graphic information by means of electromagnetic dots - designed for interior and exterior
Text and graphic displays - displays compound of a dot matrix
Numeric information displays
Operating, design, installation

  • display by means of principle of passive reflection - a reflective side of the display writers reflects back the light. The displayed information is better visible with better illumination.These panels are appropriate for high-level of ambient illumination or with internal lighting.It is possible to use an internal or external lighting or lighting of LED connected to display writers if the ambient illumination level is low.
  • information is displayed by means of reversing of coloured reflective side and black dull side of display writer
  • low power drain
  • information is saved after a voltage disconnection and it is possible to display last displayed information
  • display colour - yellow, red, green, white or orange
  • generating of audio signals


    USE
  • advertising and information boards
  • production plants
  • display of industrial processes
  • meeting centres
  • display of test data
  • departure halls
  • information for passengers
  • sport stadiums

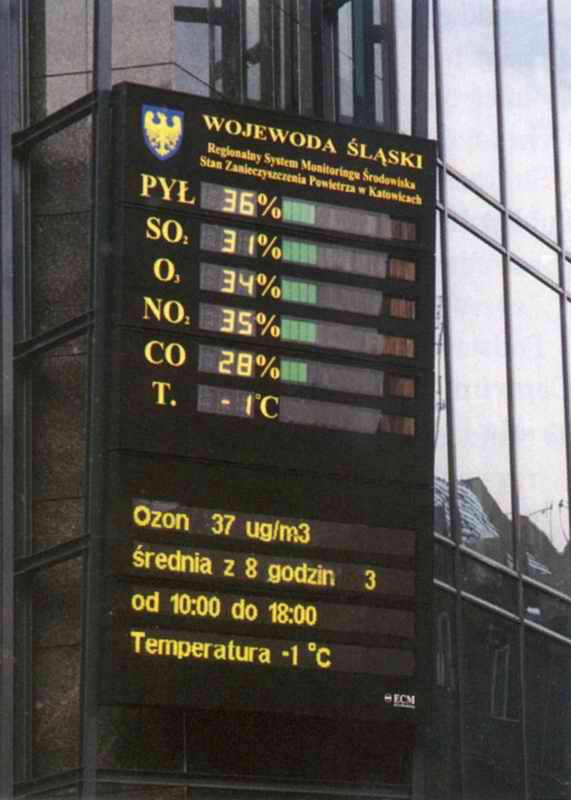

  • display of environment air condition
  • filling stations
  • scoreboards
  • hotels
  • display of the time, temperature, prices …
  • department stores
  • other products made to order
  • up

    TEXT AND GRAPHIC DISPLAYS - DISPLAYS COMPOUND OF A DOT MATRIX

    It is possible to display text and graphic information simultaneously.
  • other products made to order
  • possibility to inverse the display of the text
  • a time schedule of the display
  • Examples

  • display writers are single electromagnetic dots - yellow, red, green, white or orange
  • it is possible to connect yellow LED to each display writer for a better visibility
  • display writers life expectancy - 100 millions operations
  • the display surface is usable in text or simplified graphic mode
  • minimal raster of a character - 5 x 7 dots
  • displays consist of modules with raster 14 x 19 dots. Modules are assembled to required proportions.

    It is possible to assemble modules:
  • dot diameter 10 mm
  • horizontally to a sheet
  •
  • vertically with spaces
  • dot diameter 15 mm
  • horizontally and vertically to a sheet

  • Recommended minimal raster 56 x 19 dots.

    MODULE DIMENSION FOR DIFFERENT DIAMETER OF DISPLAY WRITERS
    Display writers diameter
    [ mm ]
    Display writer spacing
    [ mm ]
    Raster
    [ dots ]
    Display surface
    (š x v) [ mm ]
    Minimal size of character
    [ mm ]
    Readability
    [ m ]
    10 10 14 x 19 140 x 190 50 x 70 25
    15 15 14 x 19 210 x 285 75 x 105 37
    up

    NUMERIC INFORMATION DISPLAYS

    EXAMPLES
    electromagnetic information displays
    electromagnetic information displays

  • display of numbers and simple characters
  • data changing (time/ date/ temperature/...)
  • display of date, temperature, prices, …
  • large displays

  • characters are single seven-segmental displays
  • display writers life expectancy - 50 millions operations

  • HEIGHT OF CHARACTERS OF NUMERIC DISPLAYS
    Character height [mm] 100 150 250 300 450 580
    Readability [m] 35 53 88 105 158 203
    up

    OPERATING, DESIGN, INSTALLATION

    OPERATING
  • standard by means of PC by serial culvert RS 232 or RS 485
  • wireless by means of GSM module
  • data network by TCP/IP protocol
  • OPERATING SOFTWARE
    SW is a part of a supply:
  • it enables a direct operating of the panel
  • it enables editing of displayed information
  • selection of a type font, height of characters and text placing
  • a time schedule of display
  • information is saved after a voltage disconnection and it is possible to display the last displayed information
    Customer's SW:
  • the APEL® company provides a communication protocol
  • OPERATING MODE
    on-line : the display is operated by a supervisory system
    off-line : it is possible to disconnect the operating PC after the transmission of the information to the display. The display shows text in sequences with set effects by means of a built-in microcomputer.
    POWER SUPPLY
  • 230 V AC
  • low power drain
  • DESIGN
  • the display is standard in an aluminium case of natural colour or in a case with a frame
  • the case for interiors or for exteriors
  • a field for the fixed text may be a part of the panel
  • the front side of the panel is equipped with Perspex
  • INSTALLATION
    according to customer's request - ex. hanging on the wall or on the ceiling, fixing into the wall, a stand, a portable case
    up
