HARDWARE

Modules for PC-controlled mosaic panels
Modules for the serial communication
Modules for the direct connection to technological processes


MODULES FOR THE PC - CONTROLLED PANEL

PT4 ENVIRONMENT IMAGE MEMORY CARD
MX1 MULTIPLEX MODULE
JS2 SWITCH MODULE
JK2 (JK1V) CONNECTOR MODULES
7SEG1, 7SEG20 DISPLAY MODULES
HOUK  AUDIBLE SIGNALLING MODULE
OPC-24 OPTIC SEPARATORS MODULE
TMP MODULE OF RECEIVERS DMS, DO
TMB MODULE OF RECEIVERS AND SENDERS

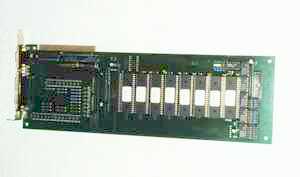

PT4 ENVIRONMENT IMAGE MEMORY CARD
  • the memory card is determined for a 32-bit PCI data bus line
  • several memory cards PT4 can be on a computer's data bus line
  • two-port SRAM 1 Mb
  • it operates lightening of 65 536 two-coloured LED diodes
  • regulation of the shine intensity in 14 levels
  • a low or high shine intensity of each LED
  • operation of 3 pairs of oscillators for the light modulation to reach:
  • the frequency of the shine oscillation from 0,1 to 10 Hz
  • the repeat of the oscillation 1:1, 1:2 or 1:3,
  • the effect of "migratory light",
  • operation of 2 acoustic signals by means of the MX1 module
  • 8 MX1 modules can be connected to one PT4 memory card
  • supply voltage of the memory card: 5 V DC
  • power consumption of the card :max. 2,5 W
  • the card dimensions: 127 × 90 mm
  • the image recovery with the frequency 80 Hz
    up
    MX1 MULTIPLEX MODULE

  • it directs the data from the card PT4 to the display modules that are placed on the surface of the dispatching panel
  • 32 display modules can be connected to one MX1 module
  • connection of data and supply voltage by means of connectors
  • operating of 2 acoustic signals
  • a check LED on the module shows the correct function of the module
  • supply voltage of the module: 5 V DC
  • power consumption of the module: max. 0,55 W
  • the module dimensions: 178 × 190 mm
    up
    JS2 SWITCH MODULE
  • this module with JK2 or JK1V modules generate the display module of the dispatching panel
  • the MX1 module controls the JS2 module
  • the JS2 module controls the shine of 256 two-coloured LED diodes that can be placed on the JK2 module or on the JK1V module.
  • the connection of the data and supply voltage for LED by means of connectors
  • supply voltage of the module: 5 V DC
  • power consumption of the single module: max. 12,5 mW
  • the module dimensions: 150 × 60 mm
    up
    JK2 (JK1V) CONNECTOR MODULES

  • the connector module for fixation to the rear side of the grid
  • 256 three-pole connectors for connection of the two-coloured or unicoloured LED diodes
  • connectors are organized in 16 columns and 16 lines
  • a seven-segmental display can be connected to the JK2 module by means of 7SEG1 and 7SEG20 modules instead of 4 two-coloured LED diodes
  • the connectors in a 12 (24) mm grid
  • power supply of LED diodes from switches JS2
  • power consumption: max. 40 mW per 1 chip LED
  • the JK2 module dimensions: 190 × 190
  • the JK1V module dimensions: 370 × 366 mm
    up
    7SEG1, 7SEG20 DISPLAY MODULES
  • they are used for connection of one (7SEG20) or two (7SEG1) seven-segmental displays to the JK2 module
  • the display with the digit height 10 (20) mm is put in to connector on the 7SEG1 (7SEG20) module
  • the display is unicolour and can be red, yellow or green
  • the comfort of the operation is consistent with the operation of LED diodes (bright shine, oscillation)
  • a decimal point is managed by every display
  • it is possible to assemble modules abreast and so make a display with the needed number of digits
  • displays are in the 12 (24) mm grid
  • power supply of the displays is from switches JS2
  • power consumption per 1 digit: max. 320 mW
  • the module dimensions : 21,5 × 44 (20 × 44,5) mm
    up
    HOUK AUDIBLE SIGNALLING MODULE

  •
  • it co-operates with the MX1 module
  •
  • it operates 2 independent acoustic signals
  •
  • the HOUK module can operate direct 2 piezosirens (150 mA, 5 V)
  •
  • the HOUK module has 2 relays with voltage-free switching contact
    (10 A, 250 V AC) for excitation of the acoustic converters that are more powerful
  •
  • a connector applies the data and power supply from the MX1 module
  •
  • outputs to piezosirens and relay contacts are on the WAGO terminals that enable to connect cables with the cross-section up to 2,5 mm2
  •
  • the module dimensions: 63,5 × 63,5 mm
    up
    OPC-24 OPTIC SEPARATORS MODULE

  • it is used for collection of two-value signals from the technological process. It separates optically even 24 signals and modulates their level for processing by TTL circuits. The signals can be galvanically independent or they can have a common positive or negative pole.
  • power supply of the module can be internal (from consequential module, e.g. PCL-722) or external. Power supply can be selected by means of a coupler.
  • the input terminal board WAGO is available for cables with the cross-section up to 2,5 mm2
  • standard voltage of input circuits: 24 V DC
  • it is possible to deliver the OPC-24 module also for other voltages of input circuits
  • current input: 5 mA
  • insulating voltage of the input circuits: 5000 V
  • a red LED on the module signalizes a situation of every input
  • output signals are led on a 50-pole connector for a flat cable. Setting of the signals makes the OPC-24 module compatible e.g. with modules PCL-722 and PCLD-782B.
  • mounting on a DIN bar
  • module weight including a DIN bar holder: 0,15 kg
  • supply voltage of the module: 5 V DC
  • power consumption: max. 1 W
  • the module dimensions: 140 × 125 mm
    up
    TMP MODULE OF RECEIVERS DMS, DO
  • it is used for receiving of telecommanded signs up to 16 units -type DMS, DMS-I or D0-100. The receivers are independent and separately programmable.
  • the module is determined for 8-bit ISA data bus line. Several modules TMP can be in one computer.
  • insulating resistance of input circuits: 500 V
  • supply voltage of the module: 5 V DC
  • power consumption of the module: 1,6 W
  • length of the sign (for DMS and DMS-l): 40, 80 or 128 bits
  • adjustable data signalling rates: 50, 100 or 200 Bd
  • the module dimensions: 115 × 338 mm (full size)
    up
    TMB MODULE OF RECEIVERS AND SENDERS
  • it is used for receiving and generation of the telecommanded signs of units - types DMS, DMS-I and D0-100. It includes 2 receivers and 4 senders of these signs. Receivers and senders are independent and separately programmable.
  • the module is determined for an 8-bit ISA data bus line. Several modules TMB can be in one computer.
  • adjustable data signalling rates: 50, 100 or 200 Bd
  • adjustable data signalling rates: 50, 100 or 200 Bd
  • length of the sign (for DMS and DMS-l): 40, 80 or 128 bits
  • insulating resistance of the input circuits: 500 V
  • supply voltage of the module: 5 V DC
  • power consumption of the module: 0,8 W
  • the module dimensions: 115 × 128 mm
    up
