EXAMPLES OF APPLICATIONS IN PRODUCTIONS PLANTS

Electromagnetic information displays to production lines
The luminous information display for display of the production line situation
The text information display in an entrance hall
The text information display in a production plant
The luminous information display in a production plant
ELECTROMAGNETIC INFORMATION DISPLAYS TO PRODUCTION LINES
type 7segmental displays - numeric
character height 305 mm
readability 110 m
power supply 230 V AC
mean current input 120 W
case aluminium, round angles, internal design
operating PC and an input card with a record of impulses from the production
panel dimensions 2500 x 1034 x 200 mm
number of lines 2
number of characters in a line 4
panel dimensions 4500 x 520 x 200 mm
number of lines 1
number of characters in a line 8
up
THE LUMINOUS INFORMATION DISPLAY FOR DISPLAY OF A PRODUCTION LINE SITUATION
type 7S - numeric display
panel dimensions 1300 x 350 x 160 mm
number of lines 2
number of characters 4+9
character height 100mm
readability 35 m
power supply 230 V AC
mean current input 200 W
operating PC and an input card with a record of impulses from production
case aluminium, internal design
up

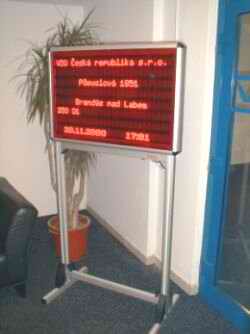

THE TEXT INFORMATION DISPLAY IN AN ENTRANCE HALL
Text information display panel dimensions 900 x 600 x 160 mm
number of lines 8 (7 x type AN + 1 x type MM)
number of characters in a line 27
diameter of LED 3 mm
LED spacing 4.5 mm
character height 35 mm
number of LED 8982
luminous intensity 1600 cd/m2
power supply 230 V AC
mean current input 300 W
operating PC
case aluminium, round edges, internal design
automatic brightness regulation
up
THE TEXT INFORMATION DISPLAY IN A PRODUCTION PLANT
panel dimensions 1300 x 130 x 80 mm
number of lines 1 type AN
number of characters 27
diameter of LED 5 mm
LED spacing 7.6 mm
character height 50 mm
readability 18 m
luminous intensity 1500 cd/m2
power supply 230 V AC
mean current input 30 W
operating PC
case aluminium, internal design
up
THE LUMINOUS INFORMATION DISPLAY IN A PRODUCTION PLANT
panel dimensions 1520 x 1110 x 160 mm
maximal number of lines 10
maximal number of characters in a line 18
diameter of LED 9 mm
LED spacing 12.7 mm
colour red, green, yellow
grades 16
number of LED 8960 (matrix 112 x 80 LED)
luminous intensity 1120 cd/m2
power supply 230 V AC
mean current input 500 W
operating PC
case aluminium, round angles, internal design
