LUMINOUS INFORMATION PANELS

Display of graphic and text information by means of lighting diodes LED - designed for interior and exterior
Basic information
Technical data
Operating, design, installation
Use
  • advertising and information boards
  • advertising agencies
  • graphic display of industrial processes
  • production plants
  • information for clients, visitors
  • meeting centres
  • information for passengers
  • department stores
  • office buildings
  • hotels
  • display of environment air condition
  • departure halls
  • scoreboards
  • sport stadiums
  • other products made to order
  • filling stations
  • towns
  •

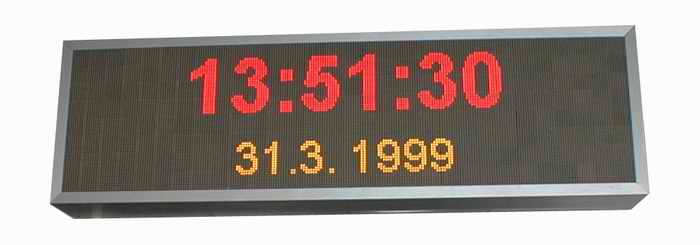

    EXAMPLES OF THE GRAPHIC INFORMATION DISPLAYS
    ball telecom telecom
    up


    BASIC INFORMATION

  • simultaneous display of graphic and text information
  • display of red, green and yellow colours in 16 shades
  • display of graphs
  • animation of graphic and text objects
  • various light effects
  • selection of a type of font, size, colour
  • generation of audio signals
  • simultaneous display of graphic and text information
  • Display writers
  • single two-colour (uni-colour) LED arranged into matrixes
  • pixels consisting of several uni-colour LED
  • display writers life expectancy 200 000 hrs
  • Panels are made of square modules with a raster 32 x 32 or 16 x 16 pixels.
  • Modules are assembled vertically and horizontally to the required dimensions and form a continuous display surface.
  • The whole display surface is usable in a graphic or text mode.
  • The minimal matrix for display of a character is 5 x 7 pixels.
    up

    TECHNICAL DATA

    MODULE DIMENSIONS FOR DIFFERENT DIAMETERS OF DISPLAY WRITERS
    Diameter of display writers[ mm ] Display writers spacing[ mm ] Raster[ pixels ] Module proportion[ mm ] Mean current input[ W ] Minimal recommended viewing distance[m] Character readability[ m ]
    3 4 32 x 32 149 20 4 10
    5 7,6 16 x 16 122 10 9 20
    9 12,7 16 x 16 205 25 13 30
    up

    OPERATING, DESIGN, INSTALLATION

    OPERATING
  • by means of PC - placed out of panel (maximal distance 100 m) or installed in the panel
  • by means of PC and SW additional inputs- internet, digital camera, DVD-ROM, etc.
  • the basic format for graphics - GIF, animated GIF
  • OPERATING SOFTWARE
  • is a part of a supply
  • enables direct operating of the panel
  • enables editing of the displayed information
  • setting of a time schedule of display
  • brightness regulation, colour range displays 16 shades
  • animation of the graphic and the text
  • setting of the type font, the size and the colour of the text, the colour of a ground, placing of the objects on the panel
  • selection of the form of the display and the direction of the objects movement
  • fast switching of displayed sequences
    POWER SUPPLY
  • 230 V AC (3 x 400 V AC)
  • DESIGN
  • the display is standard in an aluminium case of natural colour or in a case with a frame
  • the case for interiors or for exteriors
  • a field for the fixed text may be a part of the panel
  • the front side of the panel is equipped with an antireflection coating
    INSTALLATION
    according to customer's request - ex. hanging on the wall or on the ceiling, fixing into the wall, a stand, a portable case
