TEXT AND NUMERIC INFORMATION DISPLAYS


Display of text information in lines by means of lighting diodes LED – designed for interior and exterior.
The text is single-coloured - red, yellow or green.

Text displays -type AN and MM
Numeric information displays
Operating, design, installation

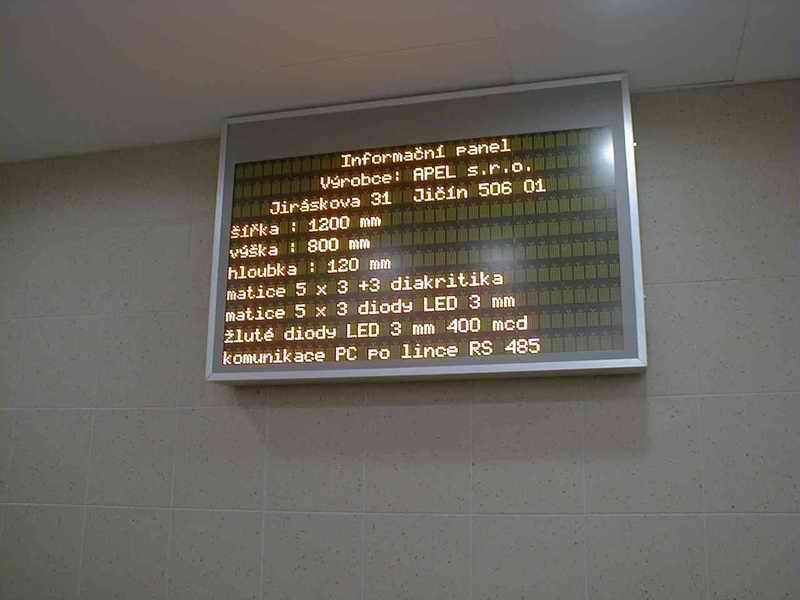

EXAMPLES OF THE TEXT INFORMATION DISPLAYS
Information display Information display Information display Information display
Information display Information display Information display Information display

USE
  • advertising and information boards
  • product plants
  • display of industrial processes
  • department stores
  • call installations
  • banks, offices
  • voting systems
  • advertising agencies
  • departure boards, information for passengers
  • hotels, meeting centres
  • intelligent bus stops
  • departure halls
  • scoreboards
  • sport stadiums
  • exchange lists
  • betting offices
  • display of the time, temperature, prices …
  • electronic menus
  • other products made to order
  • filling stations
  • up

    TEXT INFORMATION DISPLAYS - TYPE AN AND TYPE MM

    • display writers - single LED diodes – red, yellow or green
    • display writers life expectancy 200 000 hrs
    • different height of characters
    • number of lines and characters according to the customer’s requirements
    • it is possible to display a lot of information on a small space

    TYPE AN
  • The text in a line changes at one moment with select effects
  • The raster of a character is 5 x 7 pixels + 3 pixels for diacritic marks
  • there is a space between the individual characters
  • the number of characters in a line : 9, 18, 27, 36, 45; more characters in a line with effect restriction
    TYPE MM
  • The text in a line can run fluently or it can change at one moment with select effects
  • one line is made of a continuous field of LED –height 9 pixels, width according to the number of characters. A standard character is made of matrix 6 x 9 pixels.
  • there is a space between the individual characters
  • the number of characters in a line : 9, 18, 27, 36, 45; more characters in a line with effect restriction
    up

    HEIGHT OF CHARACTERS TYPE AN AND MM
    Diameter of diodes [mm] Height of character [mm] Readability [m]
    3 34 12
    5 50 18
    10 90 32
    20 196 68
    up

    APPROXIMATE PROPORTIONS TYPE AN AND MM (W x H x D) [ mm ]
    Character height Number of lines 9
    char. in a line
    18
    char. in a line
    27
    char. in a line
    36
    char. in a line
    45
    char. in a line
    34 mm 1 400x150x120 700x150x120 1000x150x120 1200x150x120 1500x150x120
    2 400x250x120 700x250x120 1000x250x120 1200x250x120 1500x250x120
    10 400x900x120 700x900x120 1000x900x120 1200x900x120 1500x900x120
    50 mm 1 550x200x120 1000x200x120 1400x200x120 1800x200x120 2200x200x120
    10 550x1100x120 1000x1100x120 1400x1100x120 1800x1100x120 2200x1100x120
    90 mm 1 850x250x120 1550x250x120 2300x250x120 3000x250x120 3800x250x120
    10 850x1550x120 1550x1550x120 2300x1550x120 3000x1550x120 3800x1550x120
    up

    NUMERIC INFORMATION DISPLAYS (TYPE 7S)

    NUMERIC INFORMATION DISPLAYS
  • display of numbers and simple characters
  • display of time, temperature, prices, scoreboards etc.
  • data changing (time/ date/ temperature,...)
  • flickering of the characters
  • characters are single seven-segmental displays

    NUMERIC DISPLAYS
    Height of character [mm] Readability [m]
    57 20
    75 26
    100 35
    181 63
    up

    OPERATING, DESIGN, INSTALLATION

    OPERATING
  • standard by means of PC by serial culvert RS 232 or RS 485
  • by means of PC by serial culvert USB
  • keyboard
  • wireless by means of GSM module
  • data network by TCP/IP protocol
  • up
    OPERATING SOFTWARE
    SW is a part of a supply:
  • it is a product of APEL®-it is adaptable to the customer’s request
  • archiving of a great deal of a text and sequences preparation
  • selection of the text and sequences and transmission to the panel
  • timing of the display with topical information
  • the display effects
    Customer's SW:
  • the APEL®company provides a communications protocol
  • up
    OPERATING MODE
    on-line : - the display is operated by a supervisory system
    off-line :
    - it is possible to disconnect the operating PC after the transmission of information to the display. The display displays text in sequences with set effects by means of a built-in microcomputer.
    - the memory capacity standard 16000 characters in max. 255 messages
    up
    OPTIONS
  • generation of audio signals
  • installation of sensors and measuring devices
  • brightness regulation - by PC or automatically depending on the ambient illumination
  • up
    DESIGN
  • the display is standard in an aluminium case of natural colour or in a case with a frame
  • the case for interiors or for exteriors
  • a field for the fixed text may be a part of the panel
  • the front side of the panel is equipped with an antireflection coating
    up
    INSTALLATION
    according to customer's request - ex. hanging on the wall or on the ceiling, fixing into the wall, a stand, a portable case
    up
